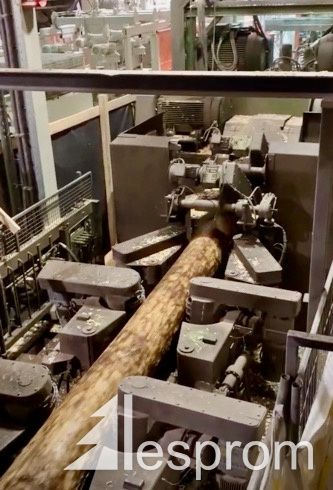

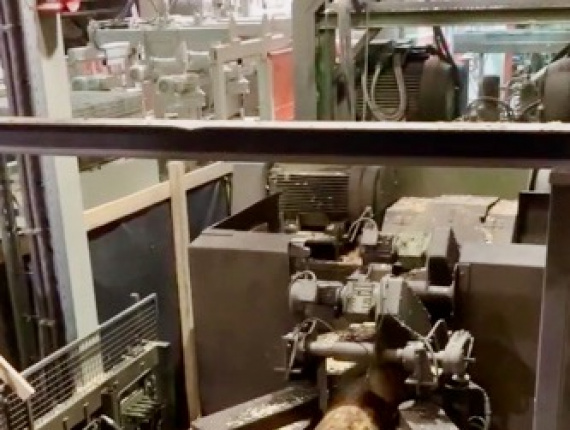

Chipper line Linck
Production data:
- Cut: approx. 350,000 fm (1 shift).
- Roundwood Ø: max. 600 mm
- Roundwood Ø: min. 100 mm
- log diameter: 12 cm - 46 cm
- Log lengths: 2.8 m to 5.3 m
- - Feed speeds: min. 40 m/min - max. 140 m/min
Sequence:
- Log feeding:
The logs are fed onto the feed deck by wheel loader.
The logs are separated by an equaliser.
The logs are aligned with a roller table and the infeed into the sawing line is done by a star feeder.
- Input measurement: KEBA - 2D input measurement
for stray log detection/knot detection
- 3D input measurement: ALFHA LOG 3D (2016)
Logs with curvature or ovality are turned in in a value-optimised way.
- Infeed VS: LINCK EV30 with infeed (BJ 2001)
- Pre-cutting chipper: LINCK VM 30 (BJ 2001)
Log Ø: max. 600 mm
Log Ø: min. 100 mm
Milling depth per cutter head: 160 mm Drive power 2x160 kW per chipper,
new chipper discs LINCK !!! 2017 !!
- Pre-cutting saw unit:
LINCK CSMK 325 (YEAR 2003)
Cuts the first 2 side boards Double hooking possible (4 SW boards) Cutting height max. 325 mm Drive power: 4 x 110 kW CATECH 4000 (yr. 2005)
- Edger 1: not available
- Edger 2: not available
- Infeed NS: LINCK/Prechtl with diagonal alignment (rebuild 2016)
- Turning device: Prechtl (year end 2017)
Output: max. 40 pcs/min
- Post-cutting chipper:
LINCK VM 45 (YR 2005)
Milling depth per cutter head: 160 mm
Drive power 2x160 kW per chipper, new chipper discs LINCK!!! 2017!!
- Profiling unit:
LINCK VP34 (BJ 1999)
Profiles the re-cut side material. The cutter was retrofitted with servo drives and can change the width from log to log in a value-optimised manner. Drive power 2x75 kW
Number of cutters 4 pcs.
- Re-cutting saw:
LINCK CSMK 285 (YEAR 2001)
Splits all main boards and all resaw boards in one pass
Cutting height: max. 285 mm
Pass width: max. 650 mm
Saw shafts Ø: 115 mm
Drive power: 2 x 200 kW
Waste disposal Rudnick&Enners
Vibrating screens and conveyors according to installation
Chipping plant Rudnick&Enners
Metal detector Mesutronic
Scope of delivery:
- - Entire chipper line: See items listed above (without log feed).
- Measurements: 2D + 3D input measurement (see above)
- Control: ALPHA control
- Electrical equipment: All switch and control cabinets
Available as an option to turn the line into a profiling line:
- Profiling unit HPF 340 4x 55kW with servo positioning
- Turning device
- Control adaptation from Alpha
- Log infeed ex warehouse 3525 Lugendorf
