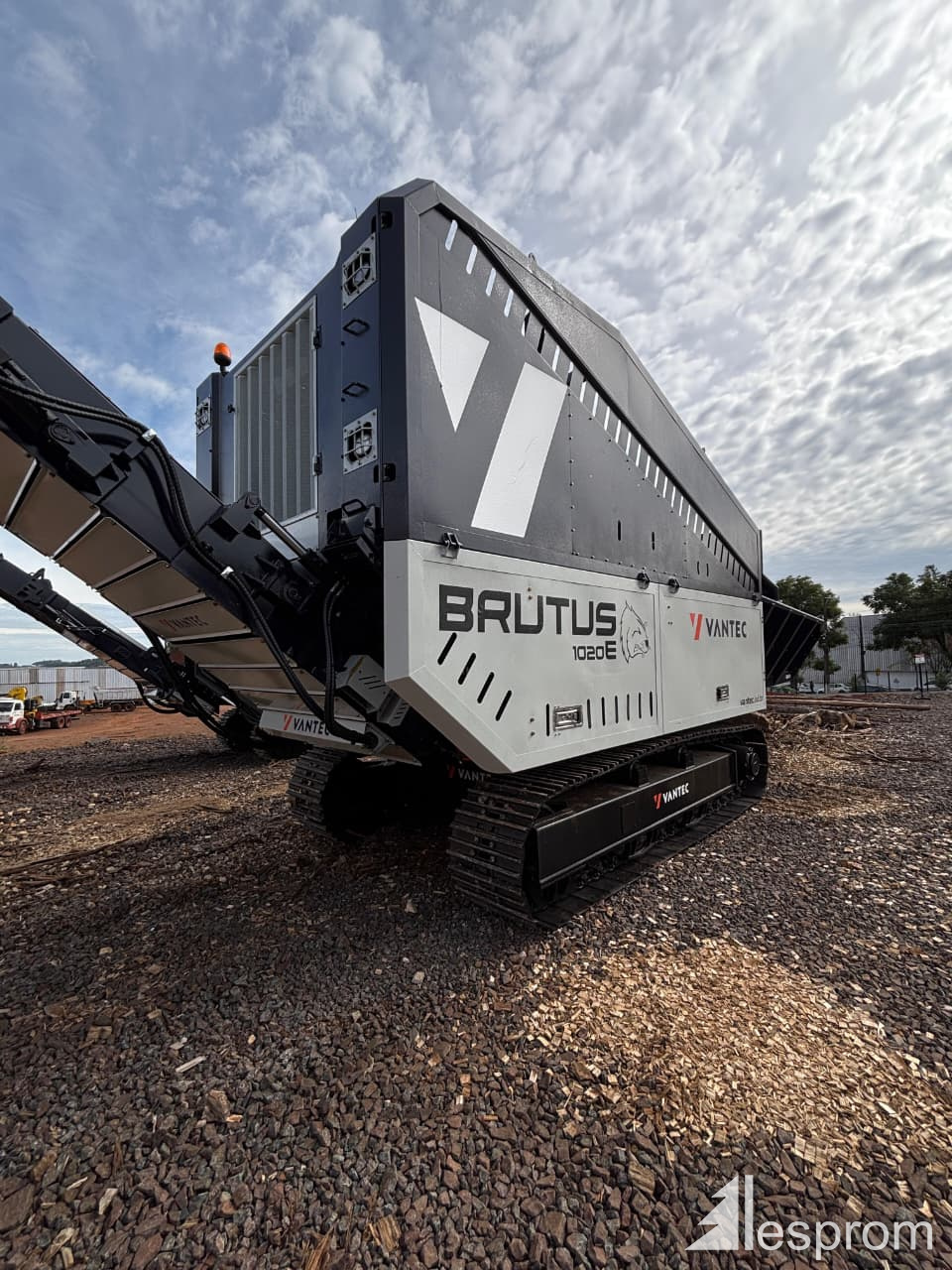

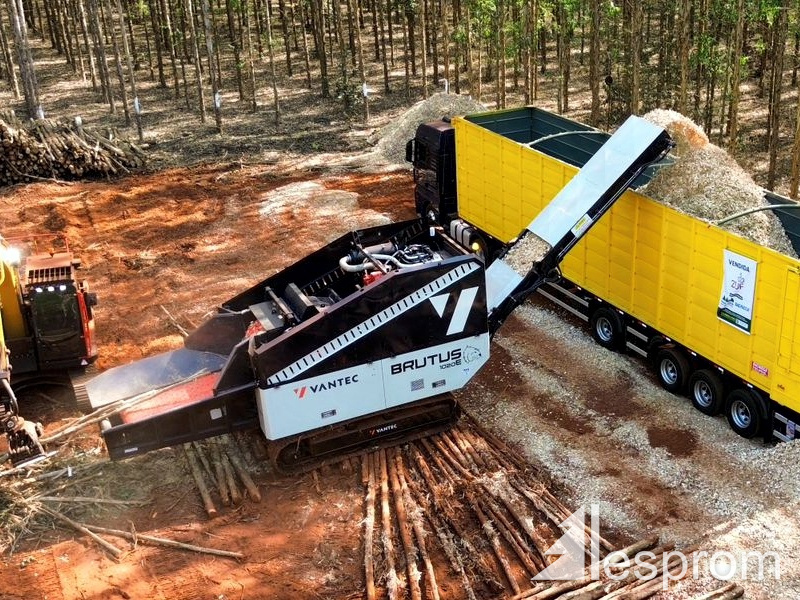

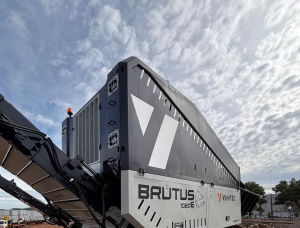

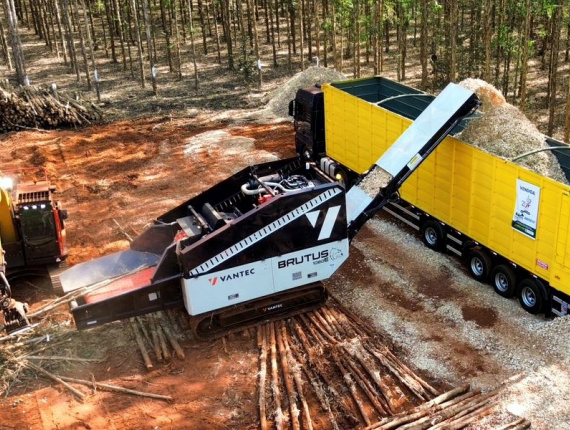

The Vantec Forestry Chipper Model BRUTUS E was designed for chip production from logs, branches, and wood residues. Robustly manufactured with solid one-piece construction in welded structural steel plates. More compact equipment, with easy access for maintenance and cleaning of the main components such as the engine and hydraulic system.

Mounted on a treadmill truck, stand support, which is reinforced and robust to overcome any type of terrain, self-propelled equipment, with control of its movement via remote control. Inlet conveyor with steel mesh. Fixed output conveyor belt, rubberized belt. Upper press roller system with a toothed roller and two lower rollers. Hydraulic counter knife extractor. Diesel engine with automatic radiator cleaning system and automatic load control. Allows the chipper to work autonomously, through hydraulic drives for the roller traction system and cylinder movement, automated clutch, 10-function remote control, panel display with alarm and engine operating data.

• Infeed Width: 1020mm;

• Infeed Height: Logs 450mm / Branches 1000mm;

• Rotor Diameter: 1000mm;

• Toothed Roller: 01 Upper (Presser);

• Toothed Roller: 02 Bottom;

• Main Engine Belt: Predator Torque Team;

• Infeed Conveyor Speed: 15 to 55 m/min;

• Number of Rotor Knives: 02;

• Counter-knife: 01 with hydraulic extractor;

• Nominal Chip Size: 20 to 50mm;

• Estimated Production: 170 to 300 m³/h;

• Diesel Engine: Scania DC 09 605hp;

• Fuel Tank: 550 Liters;

• Hydraulic Unit: 600 Liters;

• Fuel Consumption: 30/65 Liters/H;

• Infeed Conveyor Length: 3850mm – Inclined 4°;

• Chip Discharge Height: 5150mm;

• Approximate Volume According to the Wood Density:

High Density: 170 m³/h ; Medium Density: 235 m²/h ; Low Density: 300 m³/h;

• Length: 8970mm;

• Width: 2600mm;

• Height: 3977mm;

• Approximate Weight: 31.000kg;
